ARLEIGH BURKE
Guided missile destroyer
of the U.S. Navy
Functional model on a scale of approx. 1: 100
Technical expansion / production of driving readiness as well as minor restoration work
on the model
Technical specifications
-
Length approx. 1540 mm
-
Width about 230 mm
-
Total height about 520 mm
-
2 machines
-
Scale approx. 1: 100
Equipment
-
2 x SPEED 900 BB Torque 12 V motors separately controllable
-
2 x speed controls each 40 amps
-
2-leaf steering gear
-
12 V - lead acid battery 7 Ah
-
2.4 Ghz RC system
-
sound module
-
complete lighting, especially complex extensive deck lighting
-
5-blade brass sickle propeller
-
rotatable radar drives
-
US Flagging
THE MODEL
789/5000
The ARLEIGH BURKE was brought to my equipment by a customer and is now equipped with 2 Graupner SPEED 900 BB Torque 12 V motors and ball-bearing drive shafts.
For the supply I used a strong lead battery with 7 Ah, which now supplies a waterproof speed controller with 12 volt on-board voltage.

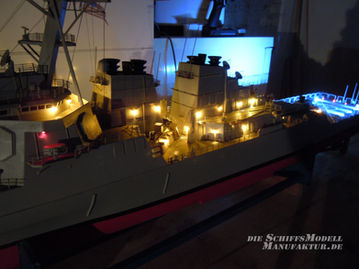

In a second step, the model was again equipped with additional technology and extensive lighting, including numerous deck lights and a replica flight deck lighting with self-colored LEDs.
Admittedly I am not a big fan of the "gray fleet", but I was impressed by the driving picture of the ARLEIGH BURKE.
We had great fun during the final test drive ...!
